Product Info

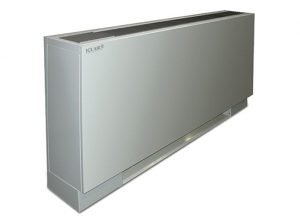

ICE AIRs Vertical Exposed FCVE units independently provide comfort cooling and heating within a room. They are often located against walls, beneath windows or along the perimeter of a room to accommodate maximum load requirements.
Category: Vertical Exposed
Products: 5FCVE02, 5FCVE03, 5FCVE04, 5FCVE06, 5FCVE08, 5FCVE10, 5FCVE12
* Available in 2-pipe and 4-pipe configurations
Specifications
| MODEL | 5FCVE02 | 5FCVE03 | 5FCVE04 | 5FCVE06 | 5FCVE08 | 5FCVE10 | 5FCVE12 | |
| Air Flow (CFM) | High | 270 | 300 | 450 | 640 | 670 | 940 | 1,090 |
|---|---|---|---|---|---|---|---|---|
| Med | 220 | 230 | 330 | 540 | 550 | 630 | 950 | |
| Low | 180 | 190 | 260 | 290 | 320 | 460 | 550 | |
| Cooling Capacity (BTU/H) | High | 4900 | 7300 | 11900 | 15300 | 23400 | 25400 | 29300 |
| Med | 3920 | 5840 | 9520 | 12240 | 18720 | 20320 | 23440 | |
| Low | 2940 | 4380 | 7140 | 9180 | 14040 | 15240 | 17580 | |
| Heating Capacity (BTU/H) | High | 8300 | 13100 | 19600 | 26700 | 38500 | 41300 | 53100 |
| Med | 6640 | 10480 | 15680 | 21360 | 30800 | 33040 | 42480 | |
| Low | 4980 | 7860 | 11760 | 16020 | 23100 | 24780 | 31860 | |
| Dimensions (inches) | Width | 41 | 45 | 51 | 61 | 63 | 77 | 85 |
| Height | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Depth | 9-1/4 | 9-1/4 | 9-1/4 | 9-1/4 | 9-1/4 | 9-1/4 | 9-1/4 | |
